High Temperature PTFE graphite gland packing

High Temperature PTFE graphite gland packing

$6.520-49 Others

$5.950-99 Others

$5.5≥100Others

Payment Type:	L/C,D/A,T/T
Port:	Shanghai or Ningbo

Option:

Black
PTFE
Mechanical Seal

Contact Now

Product Description

Product Attributes

Size: 6mm*6mm

Place Of Origin: Hebei, China

Brand Name: AOHONG

Model Number: AH-22031806

Product Name: PTFE graphite packing

Color: Black

Temperature: -150~+280°C

Pressure: 0-25 mpa

Shaft Speed: 0-8m/s

Usage: Sealing Usage

MOQ: 10 Kgs

Material: Ptfe

Package: in coils

Packaging & Delivery

Selling Units	:	kilogram
Package Type	:	Packing Details:In poly bags and cartons, standard exported package.
Picture Example	:

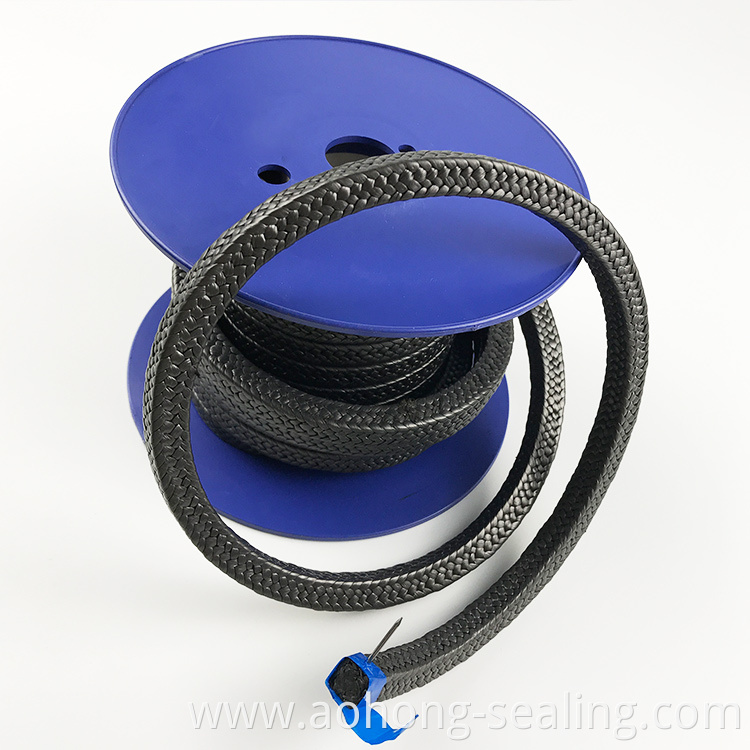

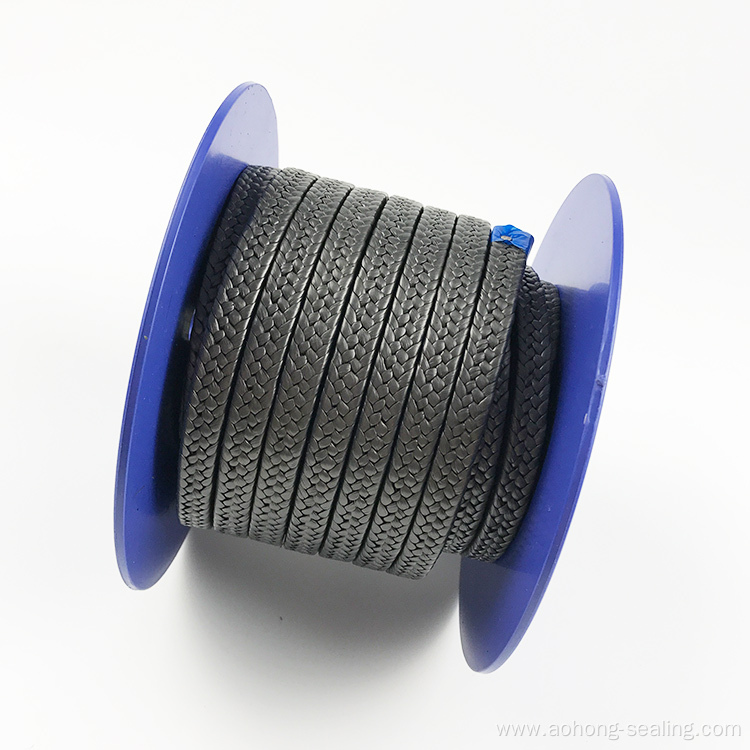

High Temperature PTFE graphite gland packing1



Product Description

Product introduction

The packing is woven of graphite PTFE yarn twisted through a mixture of PTFE dispersion resins and fine graphite poeder plus moderate amount of heat resistant lubricant.

Beater sheet, Cylinder Head Gasket, Gasket Sheet, Gauge Glass, Gland Packing, Level Gauge, Quartz Glass, Sight Glass

Application

For use in pumps, valves, reciprocating and rotating shafts, mixers and agitators. Especially designed for services involving surface speeds and temperature higher than those normally specified for pure PTFE packings. Can be safely used in all chemical pump applications with the exception of molten alkali metals, fluoride, fuming nitric acid and other strong oxidizing agents. It is also against water, steam, petroleum derivatives, vegetable oil and solvents.
